Foundation Elevation Survey
Get the data you need to make informed decisions about your foundation.
What Is a Foundation Elevation Survey?
A foundation elevation survey measures the precise height of multiple points across your foundation to create a detailed map of any movement, settling, or heaving.
Using professional surveying equipment, we take elevation readings at consistent intervals around your home’s perimeter and key interior points. This creates a baseline measurement that reveals exactly how, and how much, your foundation has moved. Foundation inspections require approximately 30 minutes depending on square footage.
In the end, you get hard data about foundation problems instead of guesswork.
Why Foundation Movement Matters in North Texas

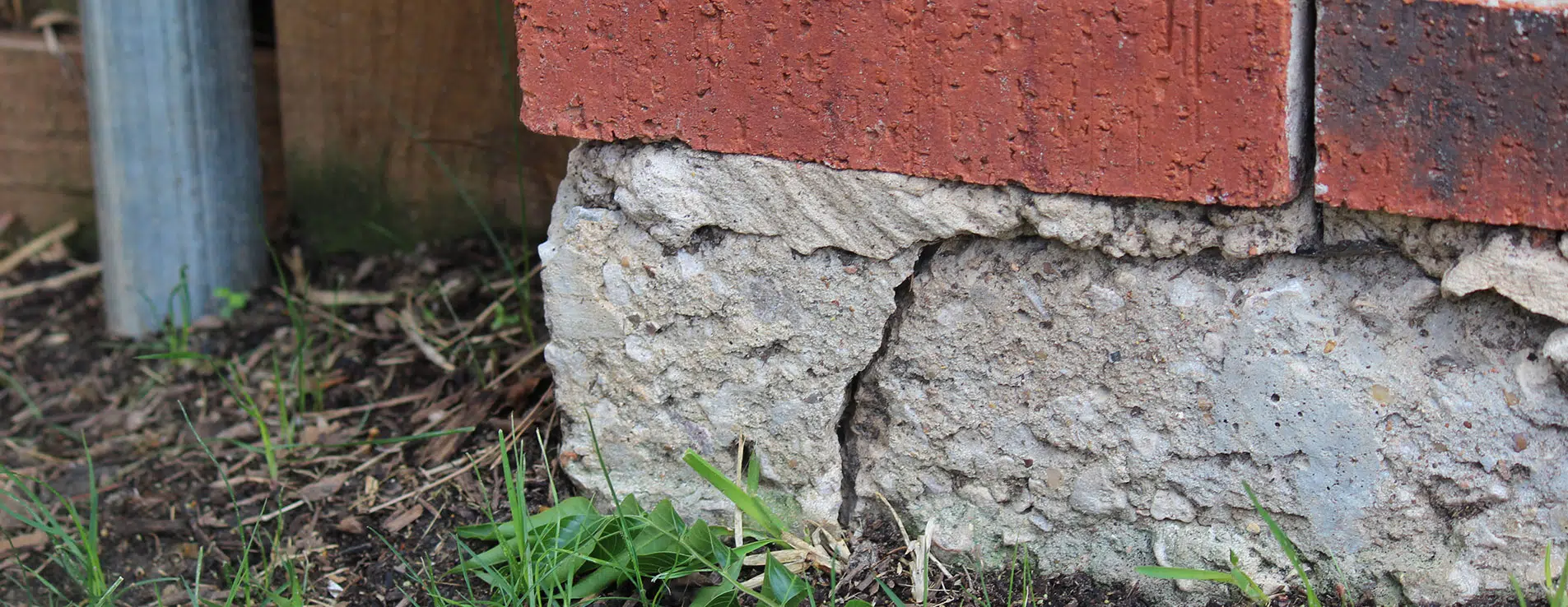

Dallas-Fort Worth sits on expansive clay soils that shrink during dry periods and swell when wet. This constant movement puts tremendous stress on foundations, causing:
- Differential settling (one side drops more than another)
- Foundation heaving (clay expansion pushes sections upward)
- Corner drops where drainage concentrates moisture
- Interior floor slabs that separate from perimeter beams
Without elevation data, you’re guessing about what type of movement is happening, and that makes repairs expensive and sometimes ineffective.
What We Measure and How
We take precise elevation measurements using professional surveying equipment at predetermined points around your foundation. Each measurement is recorded relative to a fixed benchmark, creating an accurate picture of your foundation’s current profile.
Our survey typically includes:
- Perimeter beam measurements every 10-15 feet
- Corner measurements where stress concentrates
- Interior slab measurements in key areas
- Drainage pattern documentation
- Soil conditions affecting movement
You receive a detailed report showing elevation differences, areas of concern, and measurements that foundation repair contractors need for accurate estimates.
Reading Your Elevation Report
We’re not in the foundation repair business — we don’t sell piers or foundation repair. That means our assessment is completely objective. Your foundation elevation survey includes a detailed map showing elevation differences across your foundation. We highlight areas where movement exceeds normal tolerances and explain what the measurements mean for your home.
The report includes:
- Elevation differences measured to 1/10th inch accuracy
- Color-coded map showing high and low areas
- Analysis of movement patterns and likely causes
- Recommendations for monitoring or next steps
- Data that foundation contractors need for accurate estimates
David’s construction background means he understands how your home’s structure responds to foundation movement, so you get analysis, not just numbers.
Foundation Problems Are Expensive. Get the Data First
Don't guess about foundation repair needs. Survey data saves money and ensures the right solution.
